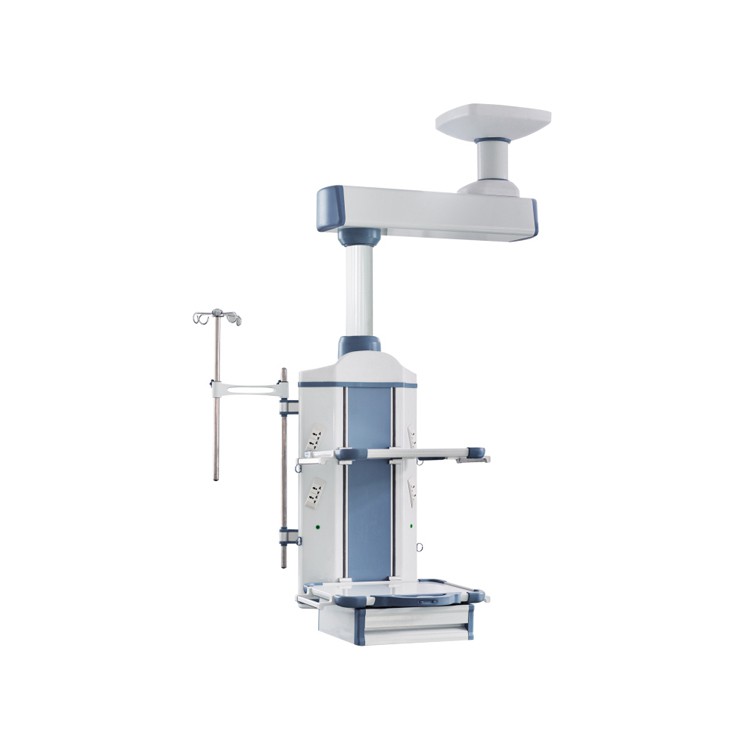

| 1, power supply: AC220V, 50Hz; |
| 2, cross arm range (radius): 750mm (can be configured according to the requirements of the hospital) |
| 3, horizontal rotation angle: 0～340°, horizontal arm and terminal box can be rotated separately or simultaneously; |
| 4, net weight ≥120kg; |
| 5, Instrument platform: 2The layer (adjustable height) size is:450X350 < /span>, 460X380,rounded corners Anti-collision design, Aluminum alloy sheet, surrounded by international standard side rails, |
| 6、Gas interface configuration (2 oxygen, 2 negative pressure suction, 2 compressed air): a, the color and shape of the interface are different, it has the function of preventing wrong connection; b. The number of insertion and removal is more than 20,000; c. The use of secondary sealing, with three states (pass , Break, pull), can be repaired with air; |
| 7, power socket: 7, 220V, 10A; |
| 8, equipotential ground terminal: 1 piece; |
| 9, 1 stainless steel adjustable infusion rod holder; |
| 10, the main material is made of high-strength aluminum alloy profiles; |
| 11, the surface treatment adopts electrostatic spraying; |
| 12, ceiling-mounted installation, stable and firm. |
